Commercial Series
Brownie’s NitroxMaker™ Commercial Series (NM-CS) systems are designed to be completely modular and extremely robust.
– The NM-CS line incorporates a Kaeser Rotary Screw Low-Pressure Compressor/Refrigerated Dryer/Accumulator Tank/Purification System rated
for 24/7/365 service with annual maintenance schedule.
– The NitroxMaker™ system is integrated into the Kaeser package for simple “modular” addition to conventional high pressure breathing air systems. Essentially the NM-CS is an instant upgrade to most dive store and dive boat operations and comes complete as a single unit.
Commercial Models
NMCS 7.5
NMCS 10
NMCS 20
NMCS 30

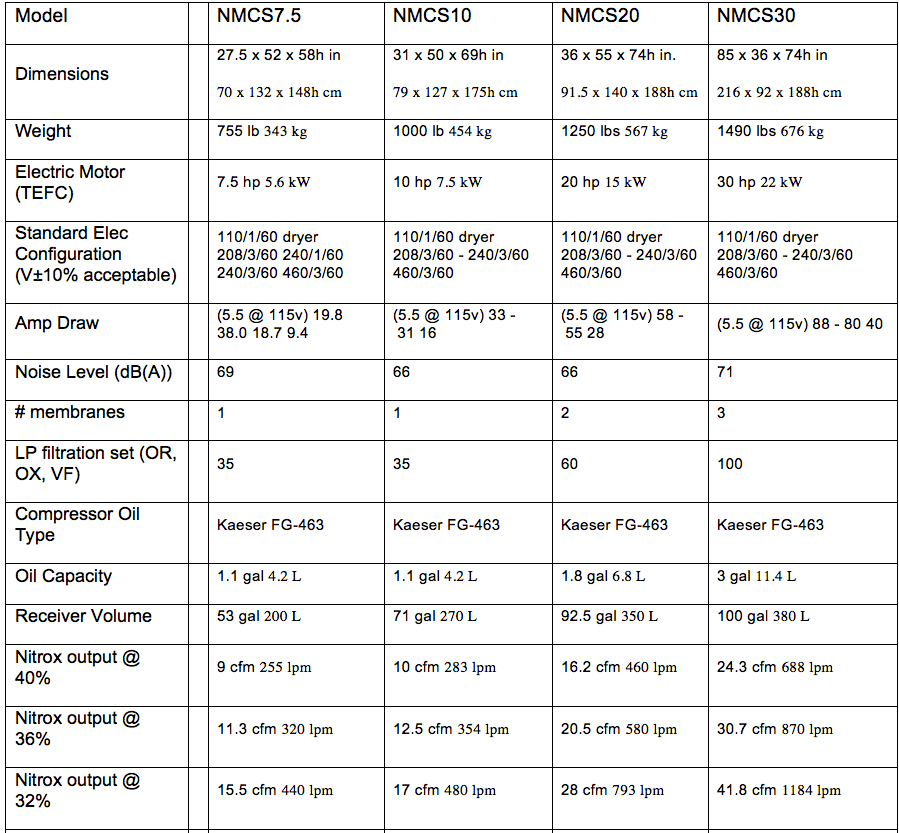

Compare
Energy Efficient
High efficiency motor with wye-delta soft start. Better airend design delivers more air per kW input power. Cooler operating temperature so it can run as much as needed without overheating. A 100% continuous duty cycle 24/7/365.
Small Footprint
Vertical receiver saves precious floor space.
Easy Installation
Single piece construction.
Easily handled with fork lift or pallet jack.
Tested and tuned – ready to connect to your HP compressor.
Flexible Configuration
Nitrox production panel can be positioned facing left, back (pictured) or to the right.
Easy Maintenance
Lightweight, one-piece cover provides easy access for service.
Routine fluid and filter changes.
NitroxMaker™
